Fiche Technique

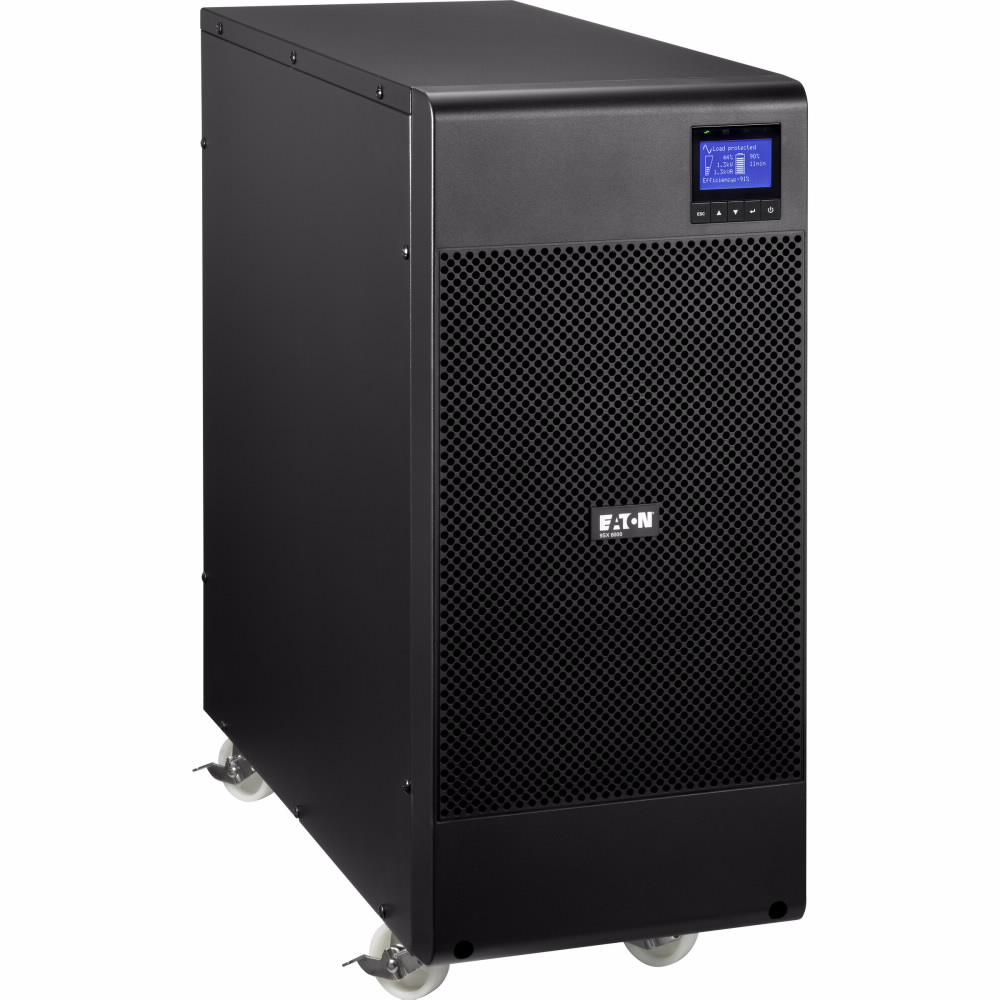

| PRODUCT NAME | Eaton 9SX UPS |
| CATALOG NUMBER | 9SX6KI |
| PRODUCT LENGTH/DEPTH | 54.2 cm |
| PRODUCT HEIGHT | 57.5 cm |
| PRODUCT WIDTH | 24.4 cm |
| PRODUCT WEIGHT | 65.5 kg |
| COMPLIANCES | CE Marked TUV cULus Listed CSA 22.2 |
| CERTIFICATIONS | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE cULus Listed EAC |
| UPC | 743172091017 |
| SECONDARY FREQUENCY - MAX | 60 Hz |
| OUTPUT WAVEFORM | Sine wave |
| MAX NUMBER OF BATTERY PACKS | 4 |
| WATTAGE | 5400 W |
| OUTPUT POWER FACTOR | 0.9 |
| FORM FACTOR | Tower |
| VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX | 3 |
| INCLUDES NETWORK CARD | No |
| INPUT CONNECTION | Hardwired/fixed connection |
| INPUT VOLTAGE - MIN | 120 V |
| OUTPUT VOLTAGE - MAX | 240 V |
| SECONDARY FREQUENCY - MIN | 50 Hz |
| SOFTWARE COMPATIBILITY | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| BATTERY REPLACEMENT | Replacable batteries & Hot-swappable extended battery modules (EBMs) |
| BATTERY TYPE | Sealed, lead-acid |
| EFFICIENCY | 94 |
| NUMBER OF OUTPUTS HARDWIRED | 1 |
| SPECIAL FEATURES | Double conversion topology Constantly monitors power conditions and regulates voltage and frequency Provides more real power (watts) to protect more equipment with a 0.9 power factor Energy efficient, reduce energy and cooling costs Internal bypass allows service continuity in case of UPS fault Next-generation graphical LCD display Meter energy consumption (at the UPS level) Hot swappable batteries Advanced Battery Management (ABM) technology to increase battery lifetime Long backup time with up to 4 optional EBM |
| CONSTRUCTION TYPE | Free standing model |
| OUTPUT VOLTAGE - MIN | 200 V |
| COLOR | Black |
| EXTENDED BATTERY CAPABILITY | Yes |
| OUTPUT VOLTAGE RANGE | 200/208/220/230/240 V +/- 2% |
| TOPOLOGY | Online/Double-conversion |
| BTU RATING | Online: 1105 |
| EFFICIENCY (ECO-MODE) | 98 |
| BACK-UP TIME | 16.5 min |
| INPUT NOMINAL VOLTAGE | >.99 |
| INPUT FREQUENCY RANGE | 40-70 Hz |
| INTERNAL BYPASS | Yes |
| INPUT VOLTAGE - MAX | 276 V |
| VOLTAGE TYPE | AC |
| PHASE (OUTPUT) | 1 |
| BATTERY MANAGEMENT | ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
| AUTO SHUTDOWN FUNCTION | Yes |
| VA RATING | 6000 VA |
| POTENTIAL FREE SWITCH CONTACT | Yes |
| PHASE (INPUT) | 1 |
| PACKAGE CONTENTS | UPS Quickstart guide Serial cable USB cable |
| NOISE LEVEL | <46 dB at 1 meter |
| FEED TYPE | 1 |
| RUNTIME GRAPH | View runtime graph |
| USER INTERFACE | Multilingual graphical LCD display |
| BATTERY QUANTITY | 20 |
| VOLTAGE | 230 V |
| HOT SWAP POWER | No |
| TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
| ETHERNET INTERFACE | No |
| COMMUNICATION | USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (2 outputs, 1 input, optocoupler, DB9) |
| RELATIVE HUMIDITY | 0-96% non-condensing |
| RACK MOUNTING KIT | No |
| OUTPUT FREQUENCY | 50/60 Hz |
| RUNTIME AT FULL LOAD | 6 min |
| PRIMARY FREQUENCY - MIN | 40 Hz |
| BATTERY RATING | 12 V / 7 Ah |
| TYPE | UPS |
| OUTPUT NOMINAL VOLTAGE | 230V default (200/208/220/230/240V) |
| EXPANSION SLOTS | One slot for optional communication card |
| INPUT VOLTAGE RANGE | 176-276 V (120-276 V with derating) |
| NOMINAL FREQUENCY | 50/60 Hz |
| PRIMARY FREQUENCY - MAX | 70 Hz |
| ALTITUDE | 3000 m |
